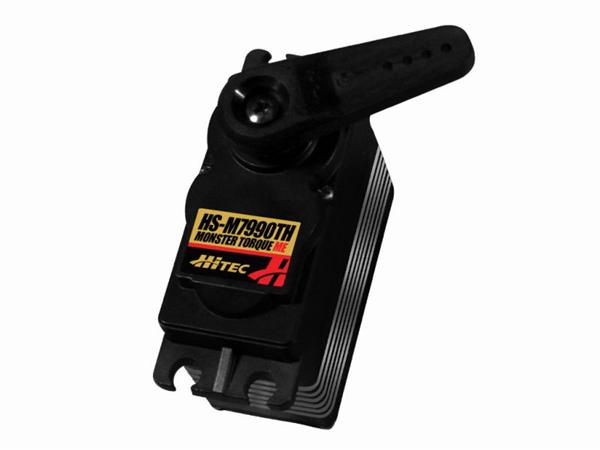

HS-M7990TH Mega Torque HV Magnetic Encoder Servo

<< Previous in Hitec Electornics Next in Hitec Electornics >>

List Price: $259.99
Your Price: $199.99
Out Of Stock
Part Number: HRC37990S
Manufacturer: Hitec
Manufacturer Part No: HRC37990S

Hitec's most technologically advanced servo, the "Monster Torque" HS-M7990TH features an ultra precise high resolution magnetic encoder instead of a conventional mechanical potentiometer. Designed to operate on a two cell LiPo Pack the HS-M7990TH features our newest high resolution "G2.5" 12 bit generation programmable digital circuit and our indestructible Titanium gears. Other features of the HS-M7990TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by brass axialbushings.

Features

  • High Resolution Magnetic Digital Ecoder
  • G2.5 12 bit Digital Brogrammable Circuit
  • Titanium Gear Train (MK first gear)
  • Ultra Performance Coreless Motor
  • Integrated Heatsink Case
  • (8) O-Rings for Water/Dust/Fuel protection
  • Dual Ball Bearing Supported Output Shaft
  • 10% larger than a HS-7955TG

Programmable Features Include:

       - Dead Band Width
       - Direction of Rotation
       - Speed of Rotation (slower)
       - End Points
       - Neutral Points
       - Fail Safe On/Off
       - Fail Safe Point
       - Resolution* (default is high resolution)
       - Overload Protection* (default is off)

*These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers.

Specifications



Motor Type: Coreless
Bearing Type: Dual Ball Bearing
Speed (6.0V/7.4V): 0.20 / 0.17
Torque oz./in. (6.0V/7.4V): 500 / 611
Torque kg./cm. (6.0V/7.4V): 36 / 44
Size in Inches: 1.72 x 0.88 x 1.57
Size in Millimeters: 44 x 22 x 40
Weight oz.: 2.73
Weight g.: 76.5
