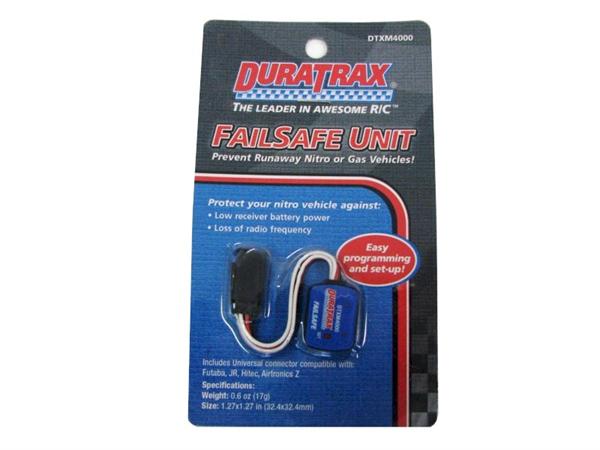

DTXM4000 - Duratrax Failsafe (Fits All Cars)

FEATURES: Prevents runaway nitro or gasoline powered vehicles
          Operates with both 4.8 and 6V batteries
          Protects against low receiver battery power below 3.8V and loss of
            radio frequency
          Universal male and female plugs are compatible with Futaba, JR,
            Hitec and Airtronics Z radio systems, see COMMENTS below

INCLUDES: One Duratrax Failsafe Unit with universal male and female plugs

REQUIRES: Use of NiCD or NiMH batteries, do NOT use ALKALINES
          Connecting between receiver and throttle servo

SPECS:    Length:          0.92" (23.5mm)
          Width:           0.67" (17mm)
          Thickness:       0.23"  (5.8mm)
          Weight:          0.18oz (5g) approximate
          Length of Wires: 2.75" (70mm) approximate

COMMENTS: Be certain radio system uses center red positive receiver/servo
            connections.
          Set-up:
             1. Turn on your transmitter and power to your receiver.
             2. From your transmitter throttle, set the amount of brake you
                 would like applied to the throttle/brake servo when Failsafe
                 is activated from loss of signal or battery power.
             3. While holding this throttle position from your transmitter,
                 push and hold the "set" button on the Failsafe for 2 seconds
                 until the red LED is illuminated. The Failsafe position is
                 the same for both battery and signal Failsafe.
